Mezzanine Goods Lifts Shepperton

Mezzanine Goods Lifts Shepperton

Through car single mast hydraulic Mezzanine Goods Lift 500kg installed Shepperton, Middlesex with a finished floor level 3610mm and platform size 1500mm x 1500mm fitted with 1100mm high infilled panels on the non-loading sides and twin opening interlocked gates finished in Orange RAL 2008

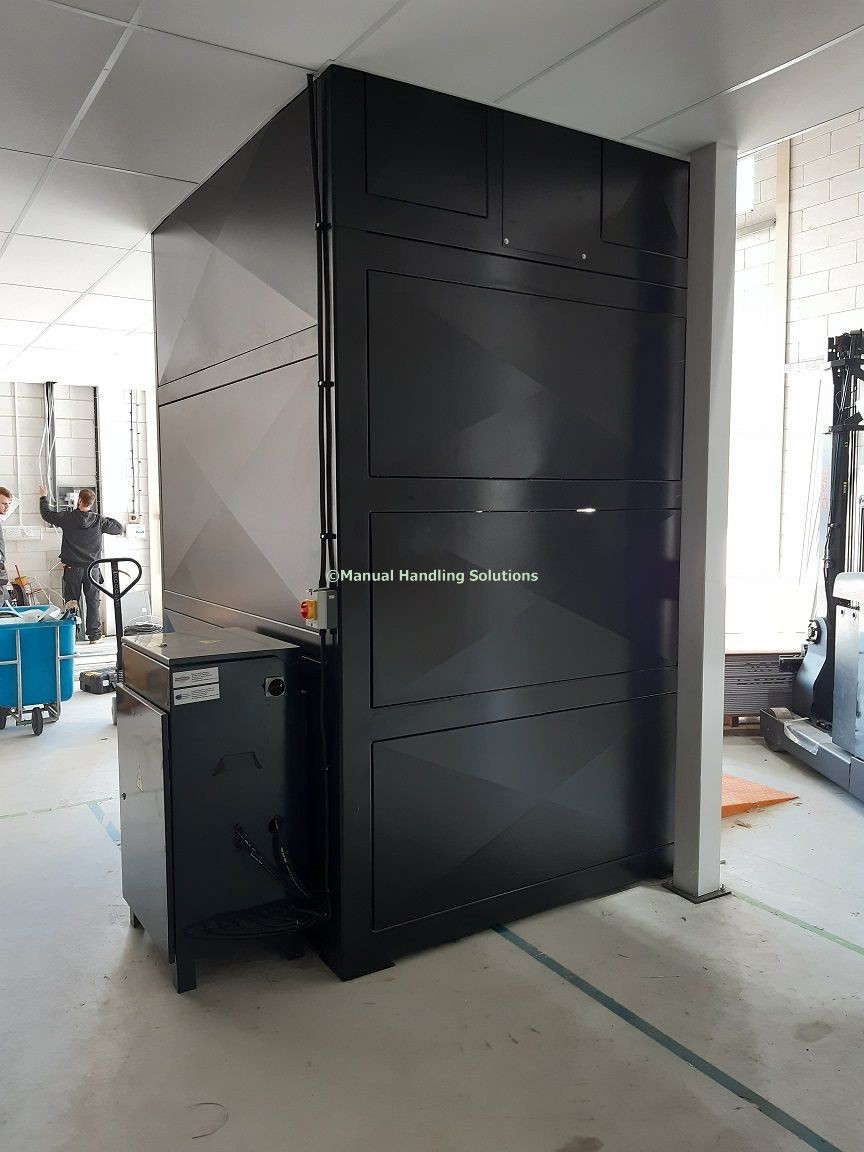

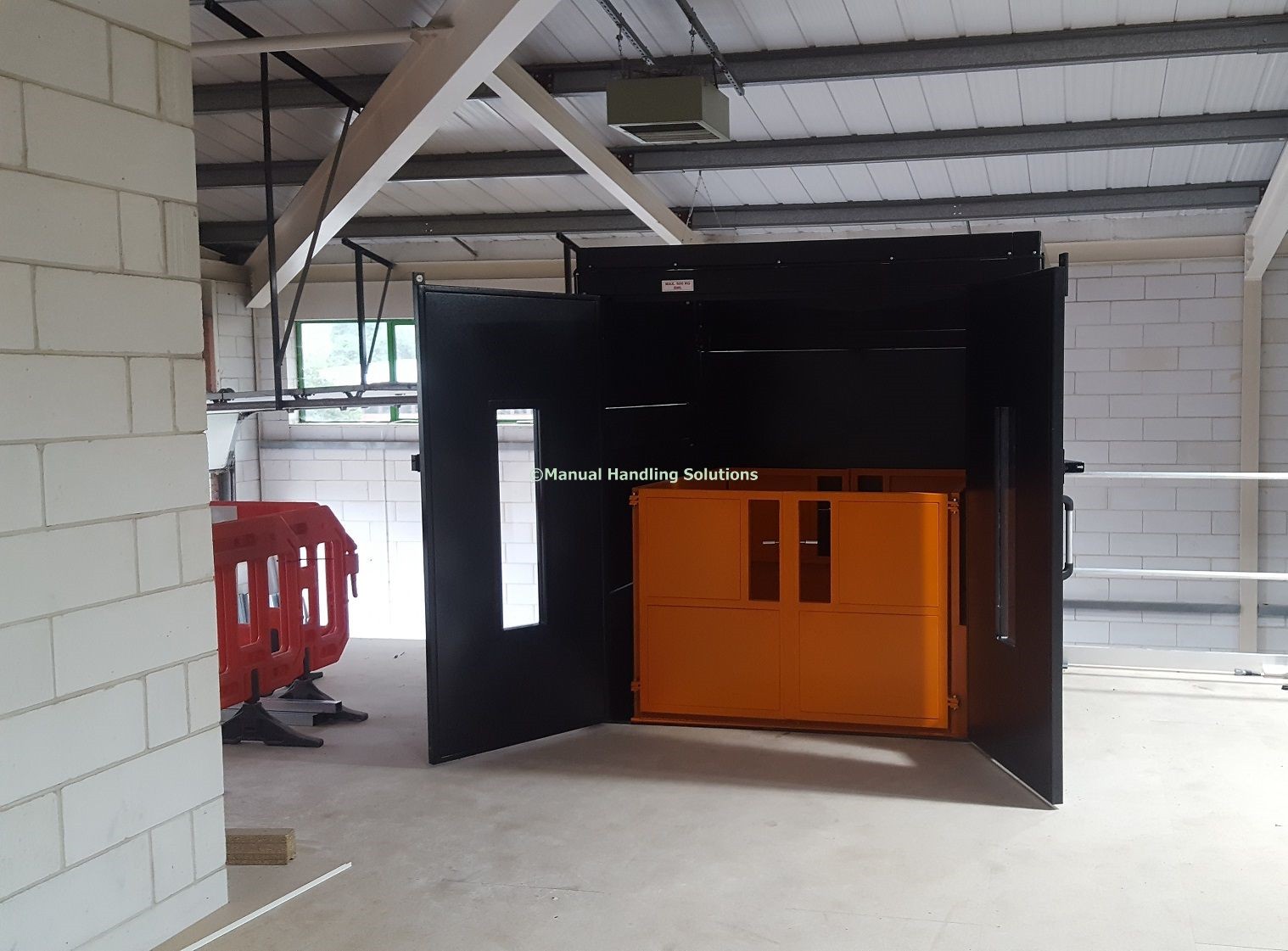

A self-supporting lift structure manufactured from 100mm x 100mm box section steel with clad infilled panels Black RAL 9005. Goods lift fitted with 2000mm high double loading gates cladded with Perspex viewing panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper level structure is 2200mm.

Mezzanine Goods lift fitted with safety shoot bolts which allow for the operator to enter the lift platform safely while the lift is docked at the upper level, also “Press to Go” one touch controls with emergency stop at both levels.

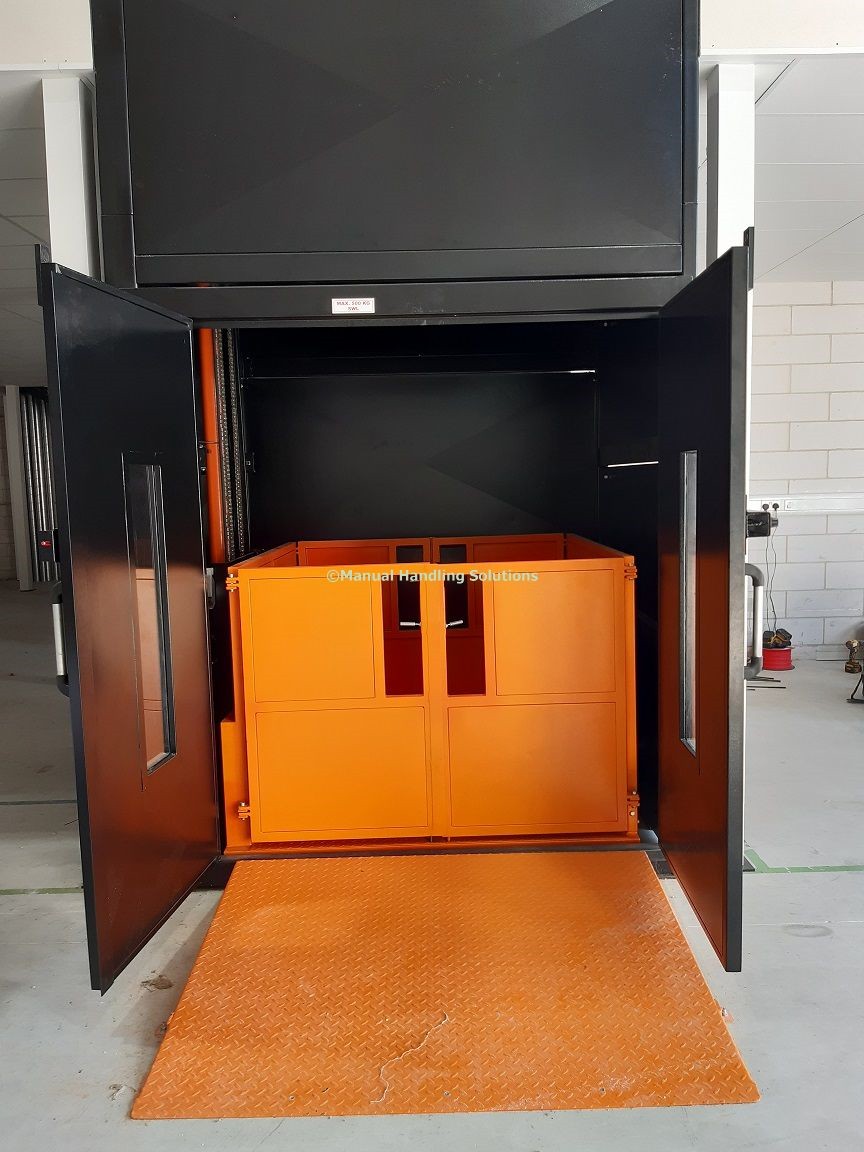

At the lower level a fixed ramp 1250mm long x 1580mm wide will be provided to assist loading on to the 120mm deep platform finished Orange RAL 2008.

To prevent damage from pallet trucks and fork lift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 2.2Kw control voltage 24 volt IP55.

General Specification

  • Emergency lowering system when power is cut off
  • Pre wired control box included magnetic starter and overload fuse
  • Upper level travel limit switch and overload relief valve
  • Hydraulic cylinders feature emergency velocity fuse if line breaks
  • Control points are fitted to both ground and upper floor levels
  • The hydraulic power pack and electrical system housed separately at ground level
  • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor

Installation; Shepperton Business Park, Govett Avenue, Shepperton , Middlesex TW17 8BA

Manual Handling Solutions Mezzanine Goods Lifts have a wealth of experience in the design, manufacturing process and installing cost effective goods lifts in commercial, residential and industrial buildings properties in and around Middlesex, Surreyand throughout the UK. We can design, manufacture and install a bespoke goods lift that accommodates almost any space and specifications. Our goods lifts range of hydraulic goods lifts are ideal for supermarkets, warehouses, factories, restaurants, pubs, museums, theatres, hotels, retail in basement or light-well locations.
