Mezzanine Goods Lifts in London
|Mezzanine Goods Lifts in London

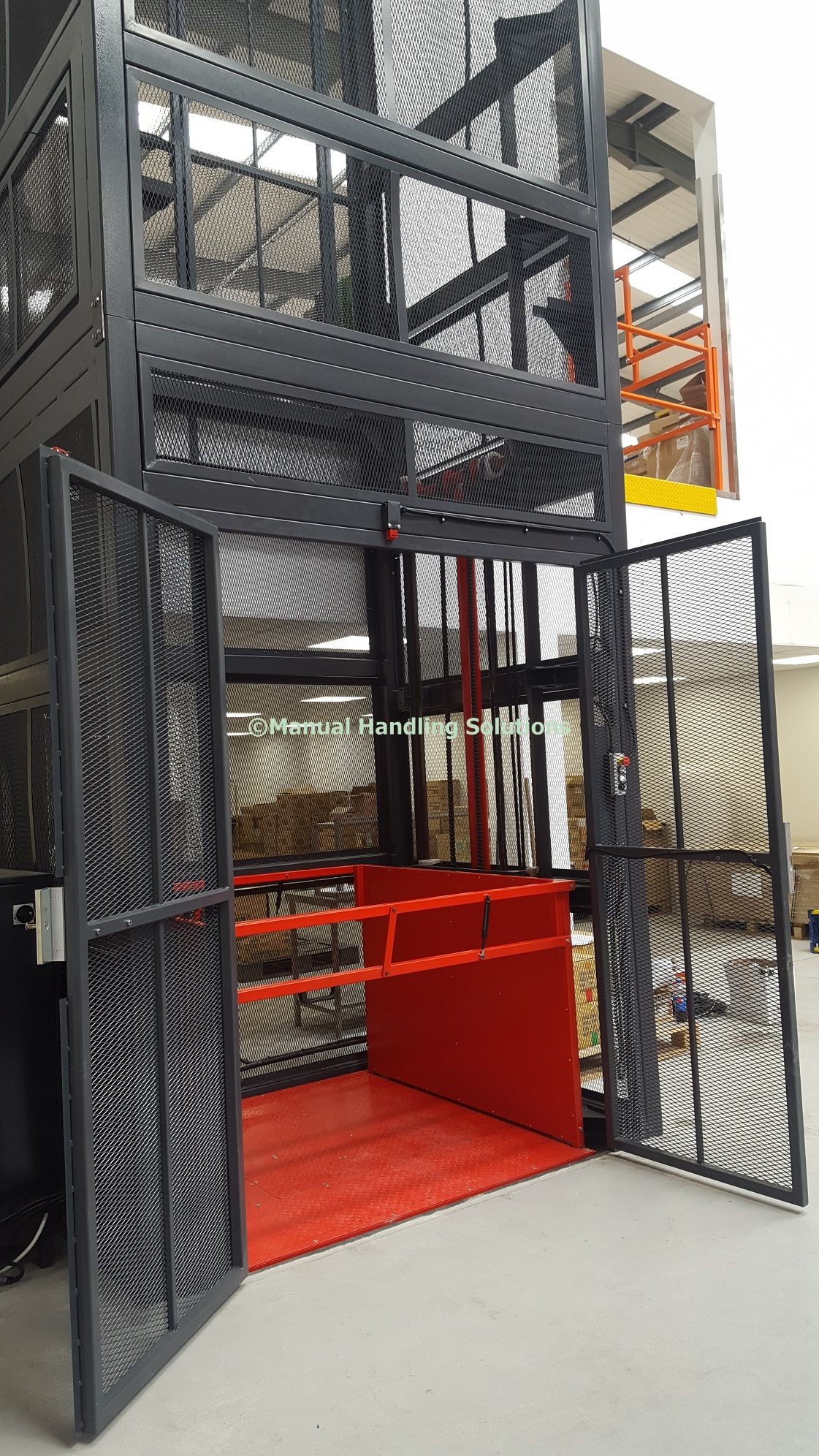

Mezzanine Goods Lift in London with opposed masts. Through car goods lift with a SWL lift capacity 1500kg and a clear platform size 1600mm x 1600mm, finished floor level FFL 3640mm. Lift platform fitted with 2 x 1100mm high infilled sheet panels on the non-loading sides in Red RAL 3020 and twin drop down barriers on the loading sides. In addition the platform is fitted with shoots bolts / parking bolts, these engage from the platform and locate on the main ring beam of the support structure making it safe for personnel to enter the platform. Goods lift surface mounted supplied with loading ramp size H100mm x W1680mm x L1250mm at lower level and “Press to Go” one touch controls with emergency stop at both levels.
To prevent damage from pallet trucks and fork lift trucks the power pack / hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 3Kw control voltage 24 volt IP55

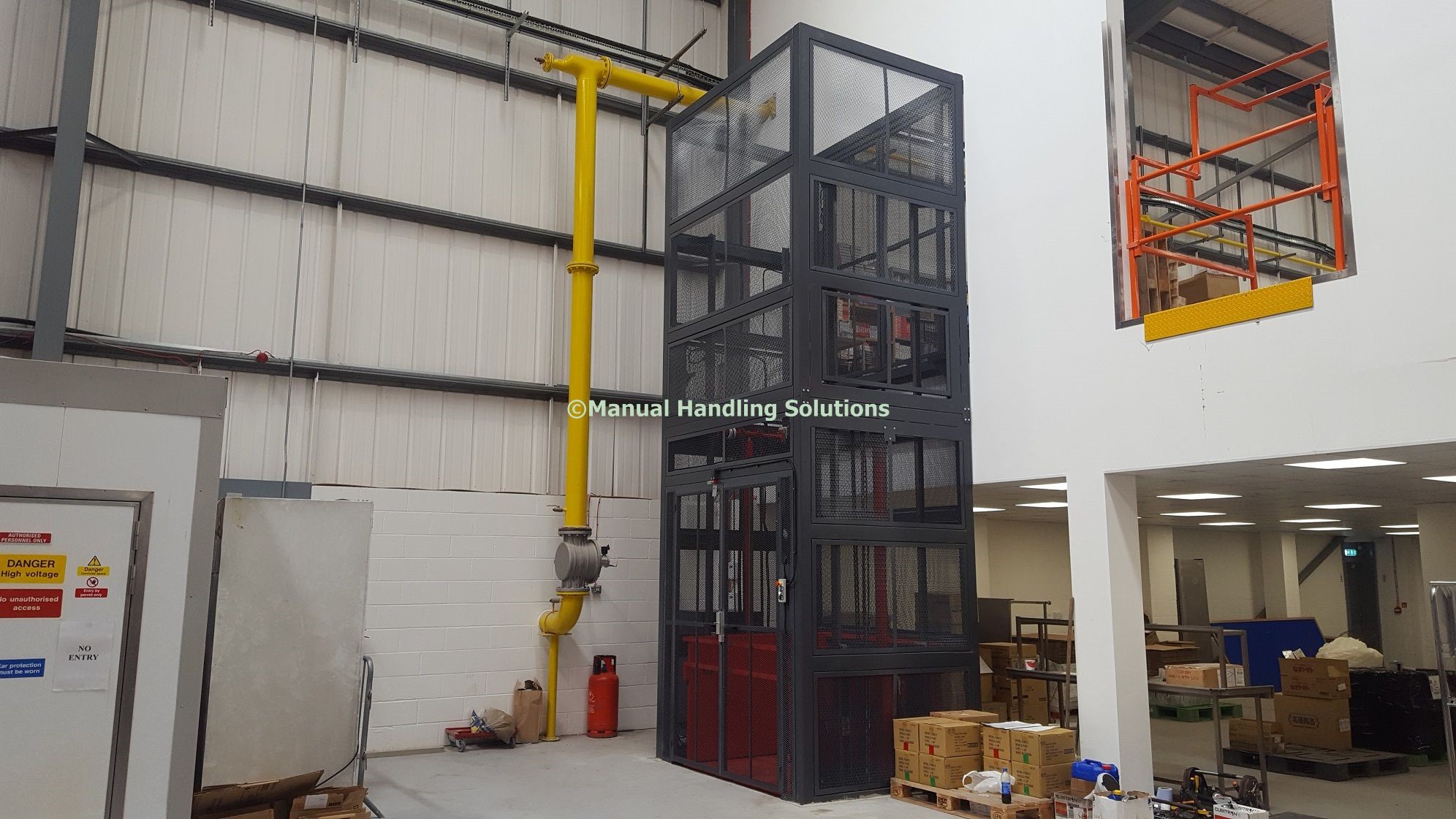

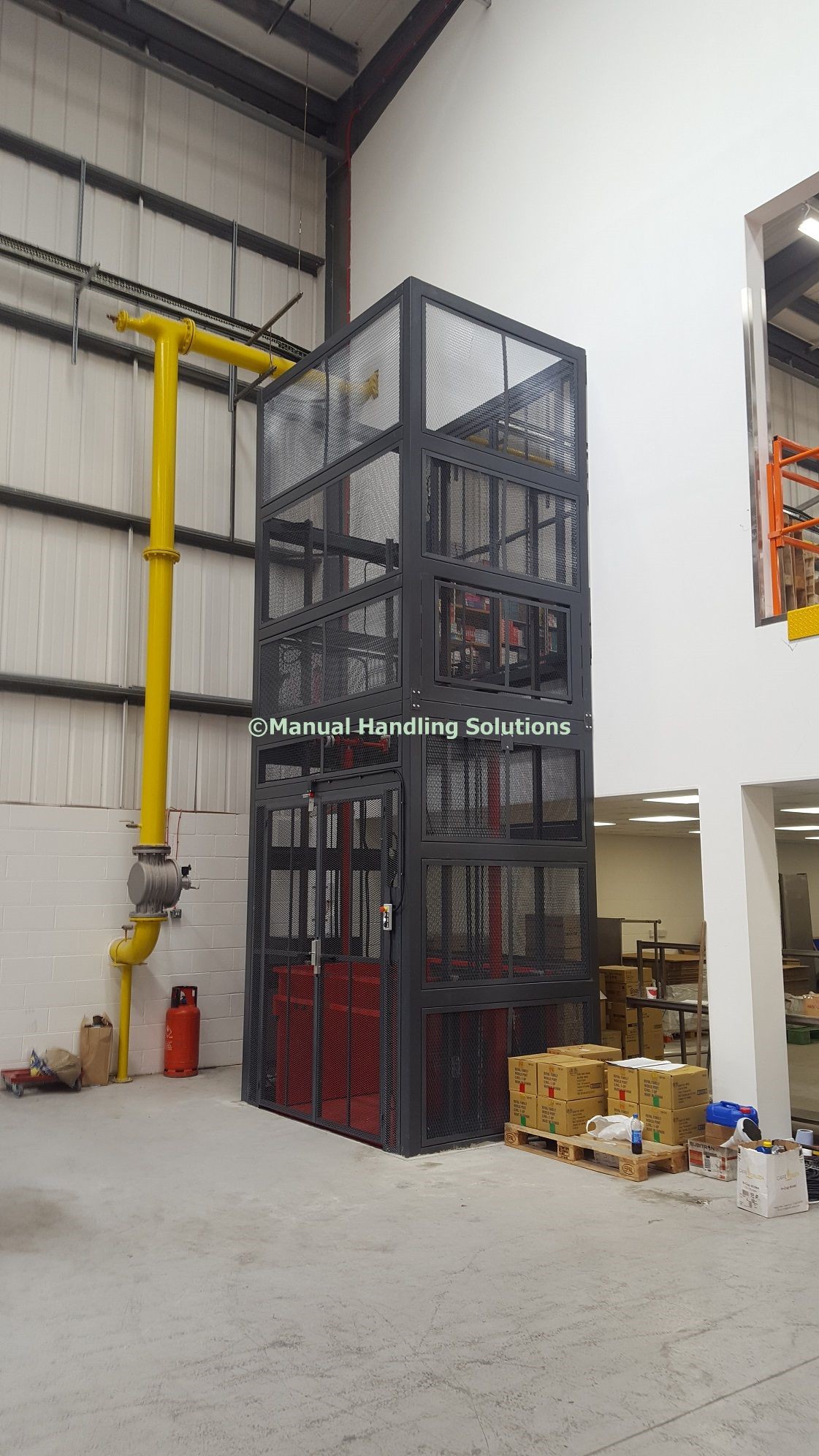

Goods Lift self-supporting lift structure is manufactured from 100mm x 100mm box section steel with welded mesh infilled panels colour RAL 7016. Goods lift manufactured with 2000mm high double loading gates mesh panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper level guarding is 2200mm.
- Emergency lowering system when power is cut off
- Pre wired control box included magnetic starter and overload fuse
- Upper level travel limit switch and overload relief valve
- Hydraulic cylinders feature emergency velocity fuse if line breaks
- Control points are fitted to both ground and upper floor levels
- The hydraulic power pack and electrical system housed separately at ground level
- The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor
- Installed; Unit B Premier Park, Willesden, London NW10 7NZ
Manual Handling Solutions – Mezzanine Goods Lifts have a wealth of experience in the design, manufacturing process and installing cost effective mezzanine goods lifts in commercial, residential and industrial properties throughout London and the UK. We can design, manufacture and install a bespoke goods lift system that accommodates almost any space and any specification. Our range of goods lifts – hydraulic goods lifts are ideal for restaurants, hotels, museums, supermarkets, warehouses, theatres, retail including basement locations.
Mezzanine Goods Lift in Harlesden, Mezzanine Goods Lift in Acton, Mezzanine Goods Lift in Ealing, Mezzanine Goods Lift in Wembley, Mezzanine Goods Lift in Perivale, Mezzanine Goods Lift in Alperton, Mezzanine Goods Lift in Neasden, Mezzanine Goods Lift in Hampstead or surrounding areas please contact Manual Handling Solutions Tel 01553 811977.
