Mezzanine Goods Lifts Chepstow

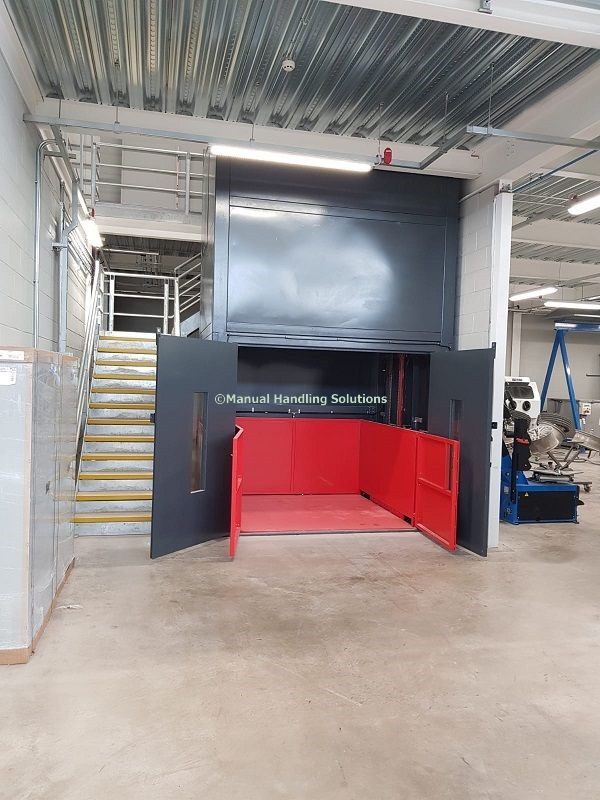

Mezzanine Goods Lifts Chepstow 1000kg opposed mast hydraulic Goods Lift installed Newhouse Farm Industrial Estate, Chepstow, Newport. Goods Lift installed in a 130mm pit (pit by others) and with a travel – finished floor level 4400mm and a platform size 2000mm x 2000mm fitted with 1100mm high infilled panels on the non-loading sides and twin opening interlocked gates finished in Traffic Red RAL 3020

A self-supporting lift structure manufactured from 100mm x 100mm box section steel with clad infilled panels Anthracite Grey RAL 7016. Goods lift fitted with 2000mm high double loading gates cladded with Perspex viewing panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper level structure is 2250mm.


Goods lift fitted with safety shoot bolts which allows for the operator to enter the lift platform safely while the lift is docked at the upper level, the shoot bolts also eliminates any flex in the platform during loading and unloading. “Press to Go” one touch controls with emergency stop at both levels fitted as standard.

To prevent damage from pallet trucks and fork lift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 4Kw control voltage 24 volt IP55.

General Specification

  • Emergency lowering system when power is cut off
  • Pre wired control box included magnetic starter and overload fuse
  • Upper level travel limit switch and overload relief valve
  • Hydraulic cylinders feature emergency velocity fuse if line breaks
  • Control points are fitted to both ground and upper floor levels
  • The hydraulic power pack and electrical system housed separately at ground level
  • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor
  • Installation; Mon Motors PDI Centre, Newhouse Farm Industrial Estate, Chepstow, Newport, NP16 6UD
