Mezzanine Goods Lift Birmingham


Mezzanine Goods Lift Birmingham Mezzanine Goods Lift Birmingham

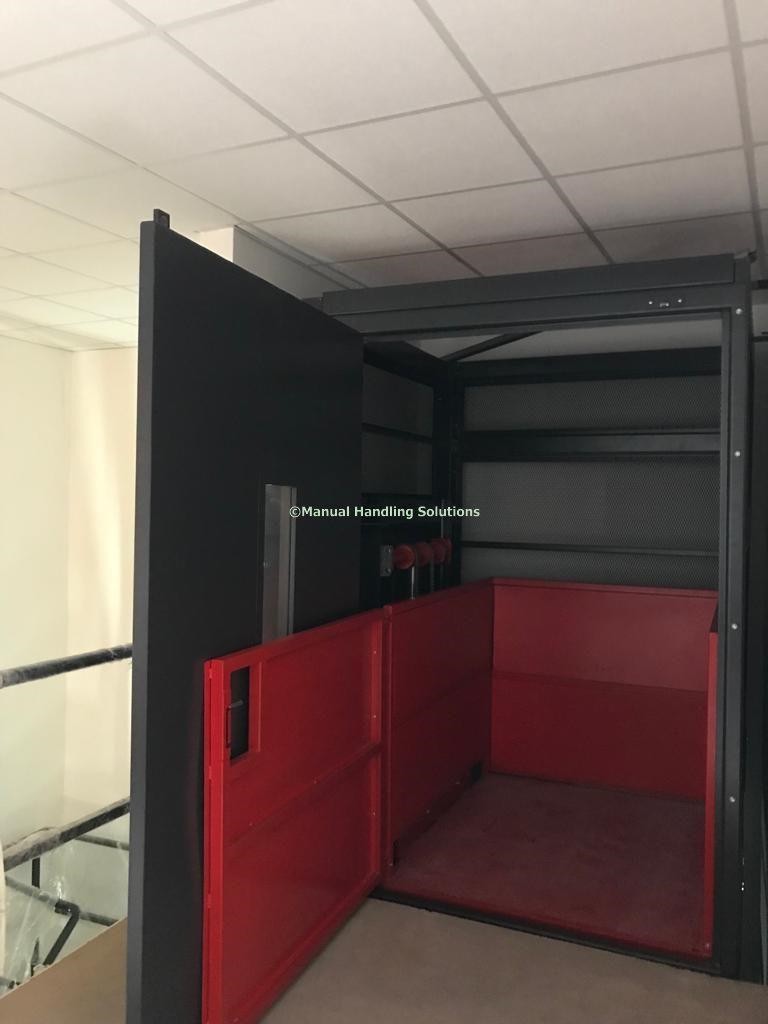

Bespoke single mast 2 stop pit installed Goods Lift 500kg for the movement of server racks. Goods Lift installed in Birmingham with a clear platform size 1500mm x 1200mm, finished floor level 3500mm.

Platform fitted with 3 x 1100mm high infilled panels on the non-loading sides and single infilled opening interlocked gate on loading sides Red RAL 3020. Goods lift supplied with “Press to Go” one touch controls with emergency stop at both levels.

The self-supporting lift structure is manufactured from 100mm box section steel with mesh infilled panels RAL 7024.

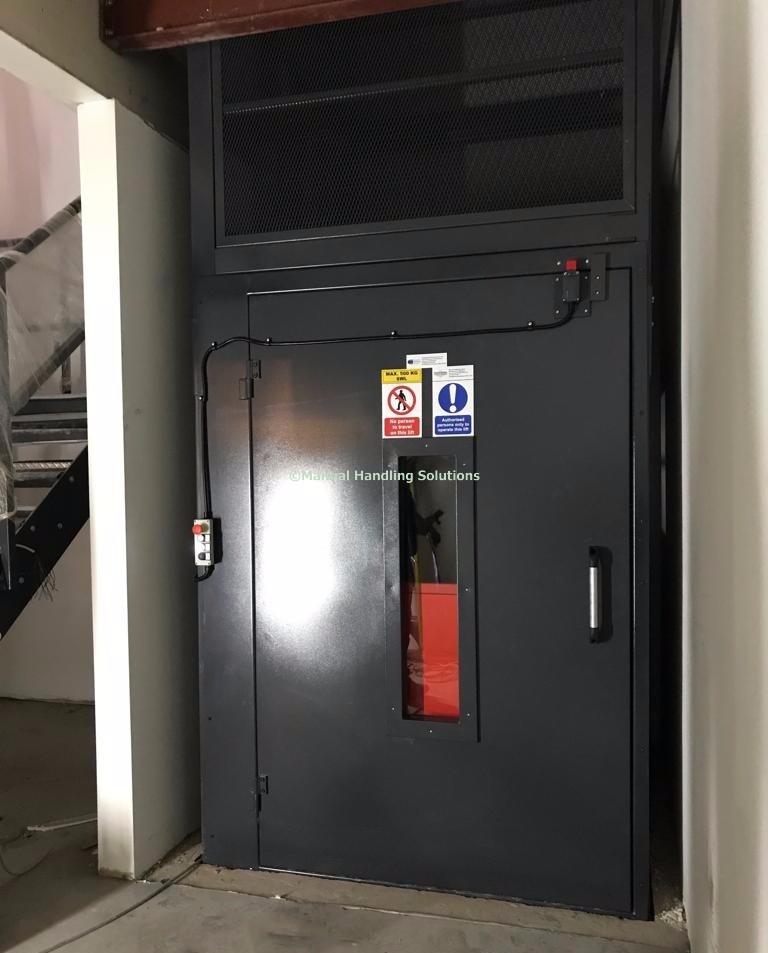

Goods lift manufactured with 2000mm high single loading cladded door with Perspex viewing panel at each level and these are fitted with magnetic interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed.

The overall height of the upper level guarding is 2200mm

General Specification

  • Emergency lowering system when power is cut off
  • Pre wired control box included magnetic starter and overload fuse
  • Upper level travel limit switch and overload relief valve
  • Hydraulic cylinders feature emergency velocity fuse if line breaks
  • Control points are fitted to both ground and upper floor levels
  • The hydraulic power pack and electrical system housed separately at ground level
  • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor
  • Lifting speed 0.14 m/s
Mezzanine Floor Goods Lifts Birmingham Mezzanine Goods Lift Birmingham Mezzanine Goods Lift Birmingham Manual Handling Solutions Mezzanine Goods Lift Birmingham West Midlands lightbox MACby v6.1

Mezzanine Goods Lifts from Manual Handling Solutions can safely lift goods / palletised items to mezzanine floors, lifts are competitively priced and available in varying platform size and capacities. Manual Handling Solutions have a wealth of experience in the design, manufacturing process and installing cost effective goods lifts in commercial, residential and industrial buildings properties throughout the West Midlands and the UK. We can design, manufacture and install a bespoke goods lift that accommodates almost any space and specifications. Our goods lifts range of hydraulic goods lifts are ideal for warehouse, factories, supermarkets, retail stores and more.
