Mezzanine Floor Lift, Goods Lift, installed at Johnson Shoes

Manufacture and install 1 off External guard system for both upper and lower floors

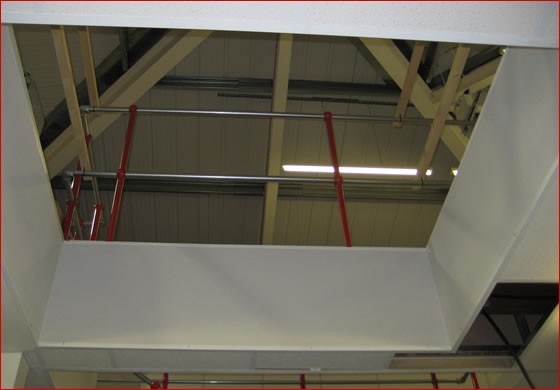

  • The lower level will be totally enclosed from floor to the underside of the Mezzanine
  • The upper level will be enclosed on 2 sides fixed rails + 2 sides of the platform saloon style gates
  • Both enclosures will feature a single out-ward opening gate and will be fitted with an electrical interlock to prevent opening when the lift is not parked.
  • Both enclosures will be in-filled with mesh to prevent access to the lift.
Mezzanine Goods Floor Lifter
Manual Handling Solutions Goods Lift Manual Handling Solutions Goods Lift Manual Handling Solutions Goods Lift Manual Handling Solutions Goods Lift Manual Handling Solutions Goods Lift Manual Handling Solutions Goods Lift rails lightbox jqueryby v6.1

Design, manufacture and install 1 off mast-type Mezzanine Goods Lift to be integrated into a new mezzanine floor system

  • The lift will be constructed using a single mast which must be bolted to the building block-work to provide additional support to the load legs.
  • The lift platform will measure approximately 1500mm wide by 1500mm deep and will close down over the legs
  • The platform will feature 1100mm high rails on all sides and a single outwards opening gate on the right hand side of the mast. The gate will be spring loaded and will lock with a gravity system but will also be sensed to prevent platform movement if the gate is open.
  • The clear working platform area will be 1350mm x 1350mm
  • The platform will close to the floor with a 60mm lowered height and have a total raised height of 3630mm
  • The maximum lift height will be governed by a limit switch system to ensure that the platform parks with the mezzanine upper floor.
  • The platform will be supplied with a loading ramp to be permanently fixed to the ground floor measuring 1200mm wide by 700mm long giving a gradient of 8.57%
  • The hydraulic power pack and electrical system will be housed in a separate wall mounted box at ground level.
  • Control points will be positioned at both ground and upper floor levels. Both points will feature latching call buttons and emergency stop controls.
  • Power requirement: 415V 3 phase + Neutral via 10amp isolator (Supplied by customer)
  • Motor specification: 0.8Kw 3phase 415V with 3ltr reservoir
  • Maximum lift capacity will be 500Kg
