Low Rise Platform Goods Lift

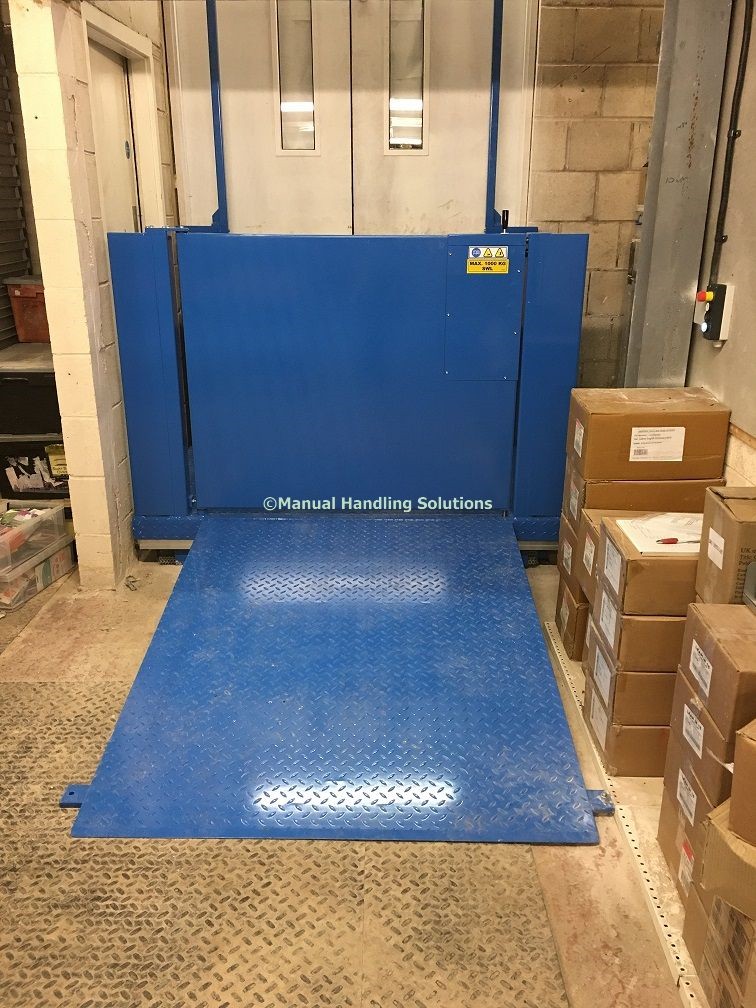

Low Rise Platform Goods Lift capacity 1500kg uniformly distributed load (UDL). Travel height 1100mm closed height 230mm total raised height: 1330mm limited to 1300mm via an adjustable limit switch. Platform constructed from mild steel anti-slip chequer plate length 1775mm x width 1150mm. unit supplied with run on ramp 1250mm wide x 1600mm length. Power details Motor 0.75kW (415V 3 phase) with built in hydraulic power pack, lift speed 40mm/sec.
lightbox MACby VisualLightBox.com v6.1
Safety guarding hand rail steel clad returns on lift long sides height 1100mm. Platform steel clad single gate at lower level long side with interlock B. Goal post mounted on upper level long side to create a barrier at the upper level. Chain mesh fitted to one long side of platform.
Single Scissor Goods Lift supplied with 2 x Control boxes – 1 mounted on at each level on walls with constant pressure push button control box – Up Down E stop for lift. Installation and handling lift supplied with lifting eyes inserted through platform to locate in landing leg top for handling and installation into pit or positioning – lifting eyes removed once lift is in position. Access hatch opening located in platform over power pack for easy installation and maintenance.
Unit delivered, off loaded and positioned by means of hiab vehicle, installation was carried out within 1 day by 2 engineers. Included; Commissioning CE Mark and electrical test of install included, Operator training and handover including issue of Operation and Maintenance Manuals.
On completion of installation the surrounding area of the lift will be enclosed forming a lift shaft, works carried out by others.
Delivered and installed; Arndale Centre Manchester, Market Street, Arndale Shopping Centre, Manchester, Lancashire M1 1WR.
