Goods Lift installed in a deli, restaurant and indoor market in the heart of Bishop Stortford, High Street Hertfordshire. The free standing 1000kg cladded goods lift is enclosed in a fabricated shaft (by others) with a lift height 2940mm.
The goods lift will be used to bring stock and roll cages from basement to upper shop floor level with entry and exit on the same face. With a clear platform size 1500mm x 1500mm and a full cabin enclosure fitted with bumper rails and internal lighting.

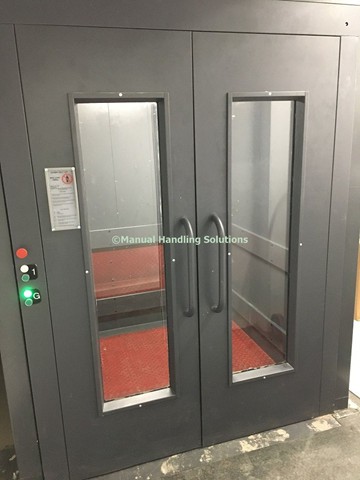

Fully interlocking double opening doors are fitted to both levels which cannot be opened until the lift is docked at the appropriate floor level, door fitted with viewing glass to allow the operator a visual during the operation of the lift.
Goods lift supplied with PLC lift logic control board and push-buttons for each level along with sensors and “Push to go” one touch controls. Visual indicator lights show platform is moving, door open, safety chain off, platform is on level, overload, error or protection activated.
The hydraulic and electrical system is housed in a lockable metal cabinet dimensions 600mm x 730mm x 570mm. The finish Tower; Dark Grey (RAL 7024) Platform; Cav Red (RAL 3011). If required we can supply the lift mesh or Zn.
Safety is in compliance with E.C rules (Machinery Directive 2006/42/EC).
