Goods Lifts installed in Lancashire

Goods Lifts installed in Lancashire Goods Lifts installed in Lancashire

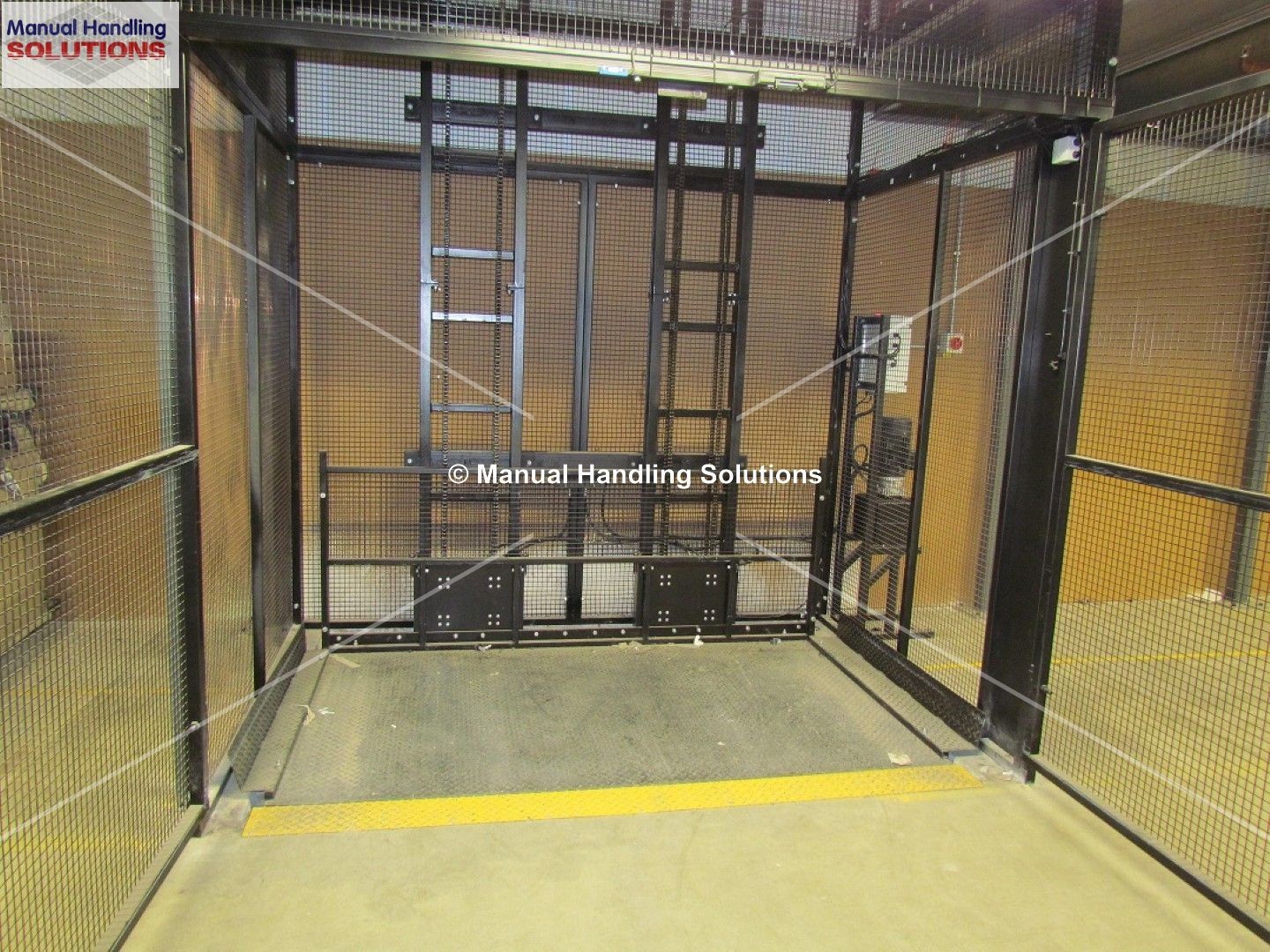

Goods Lift, with maximum working load 250kg Double Mast, 3040mm Floor to Floor Height enclosed in a self- supporting mesh shaft. The platform will be 2650mm x 1400mm bespoke for Sofa trolley size and guarded 900mm high on the non-loading edges. Loading and unloading On/Off same side.

At the entrance to the lift at both levels there will be 2000mm high gates, which will be fitted with electrical interlocks to prevent the gates being opened unless the platform is docked at the appropriate level and prevent the lift being operated unless all gates are closed.

At the lower level 50mm pit will be required size 2750mm x 1870mm. No Ramp pit (by others)

Goods Lift power requirements are; 415V 3 phase supply terminated in a double pole switch at the lower level. Control is via push to run, push button control station adjacent to the gates at both levels.

Documentation CE Mark and Declaration of Conformity, Operation and Maintenance Manual issued on completion. LOLER Report of Thorough Examination and Test issued on commission. Training Operator training carried out on completion.

Goods Lift Maintenance The 12 months Statutory Inspections and maintenance   ensures continued safe and reliable use of the equipment and full compliance with current legislation.  In brief it comprises an annual service with thorough examination and test, a six-month inspection and test and all labour or callout charges. Installed for client in Lancashire.

goods lift 250kg lancashire goods lift in pit lancashire goods lift platform swl 250kg lancashire goods lift 250kg swl large platform goods lift mezz lift mezz lift 250kg lancashire mezzlift 250kg lancashire pit installed goods lift 250kg platform lift lancashire 250kg swl goods lift lancashire lightbox MACby v6.1
