Goods Lifts Cladded Aldermaston Hampshire

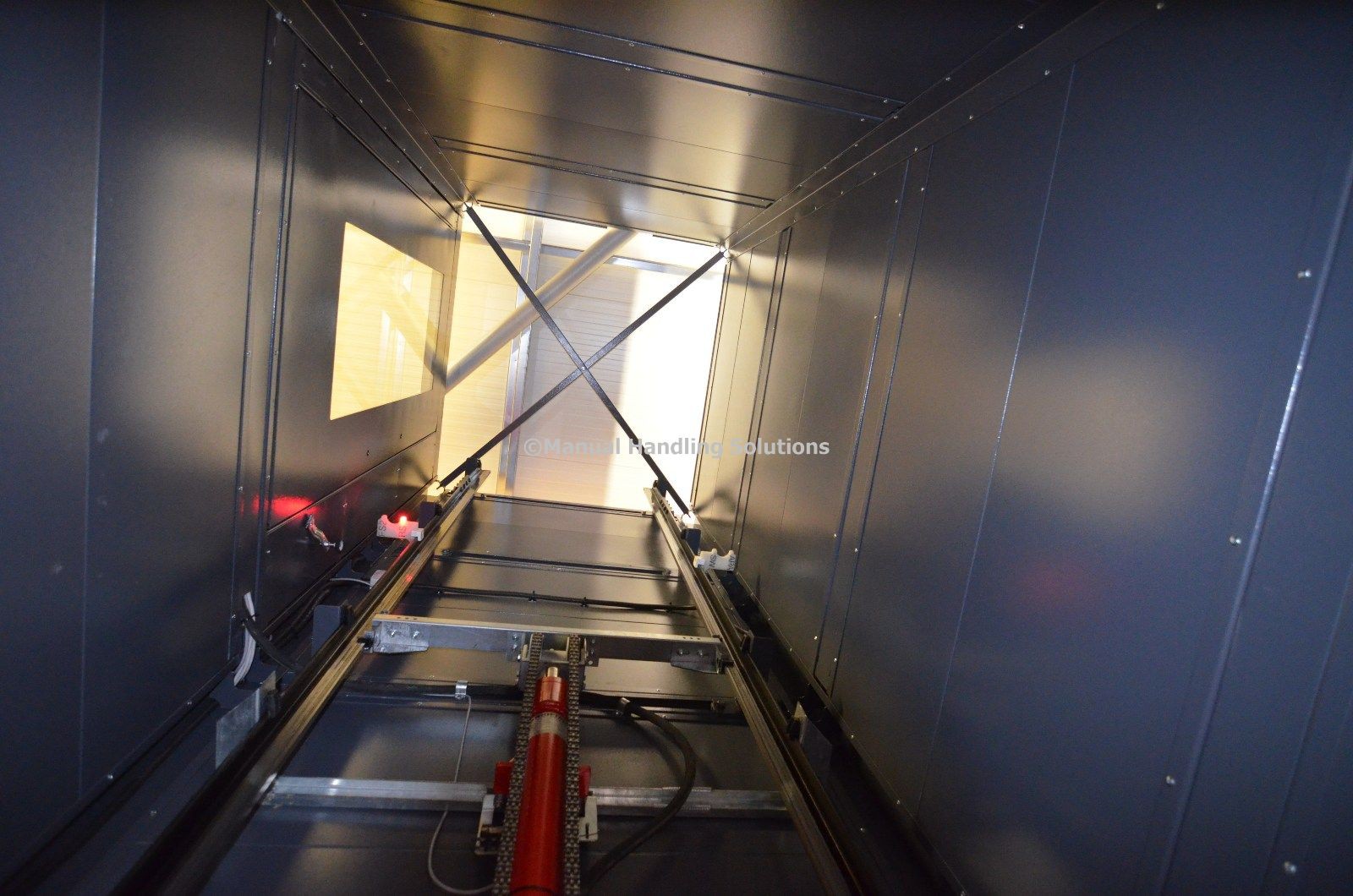

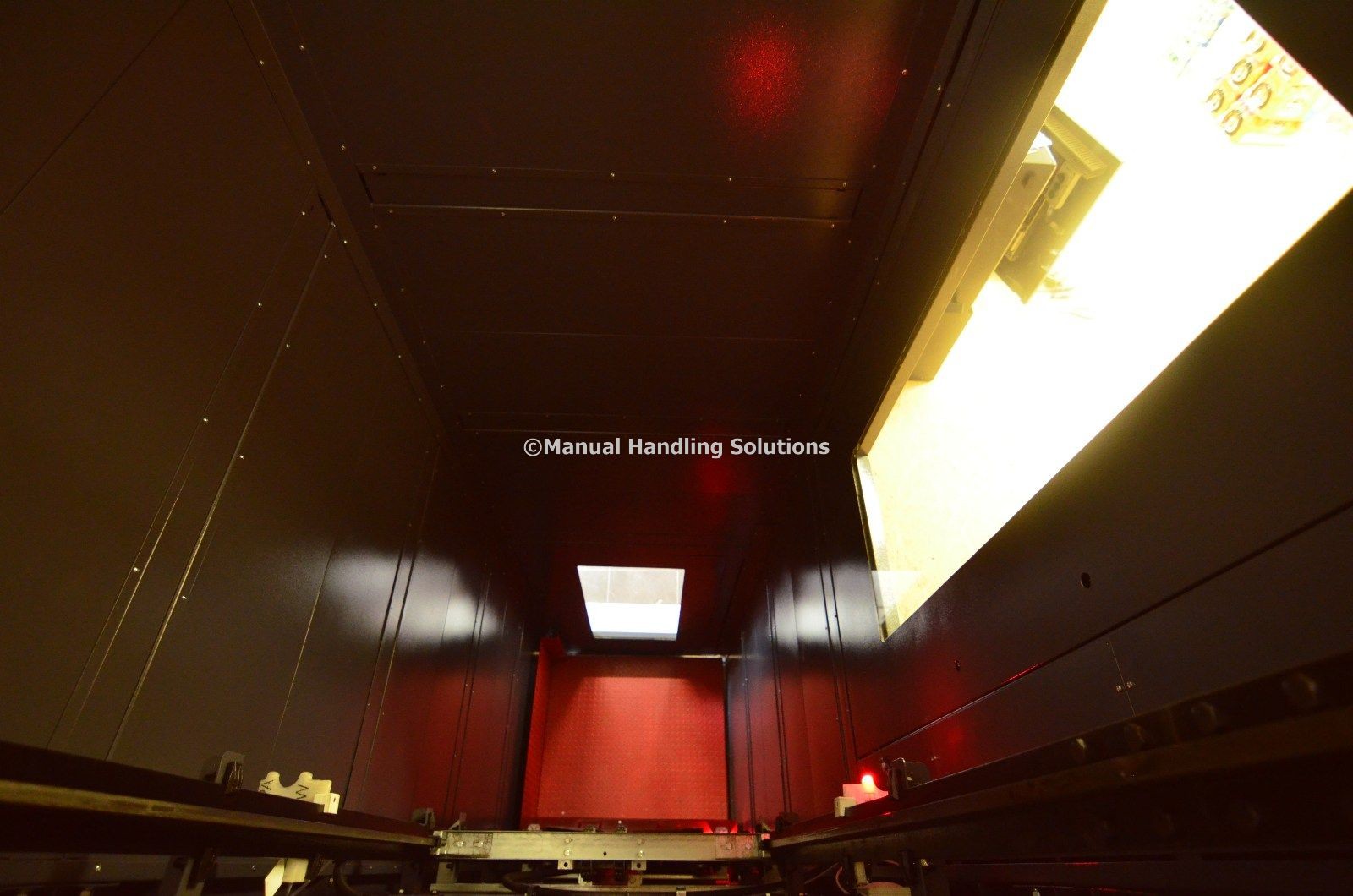

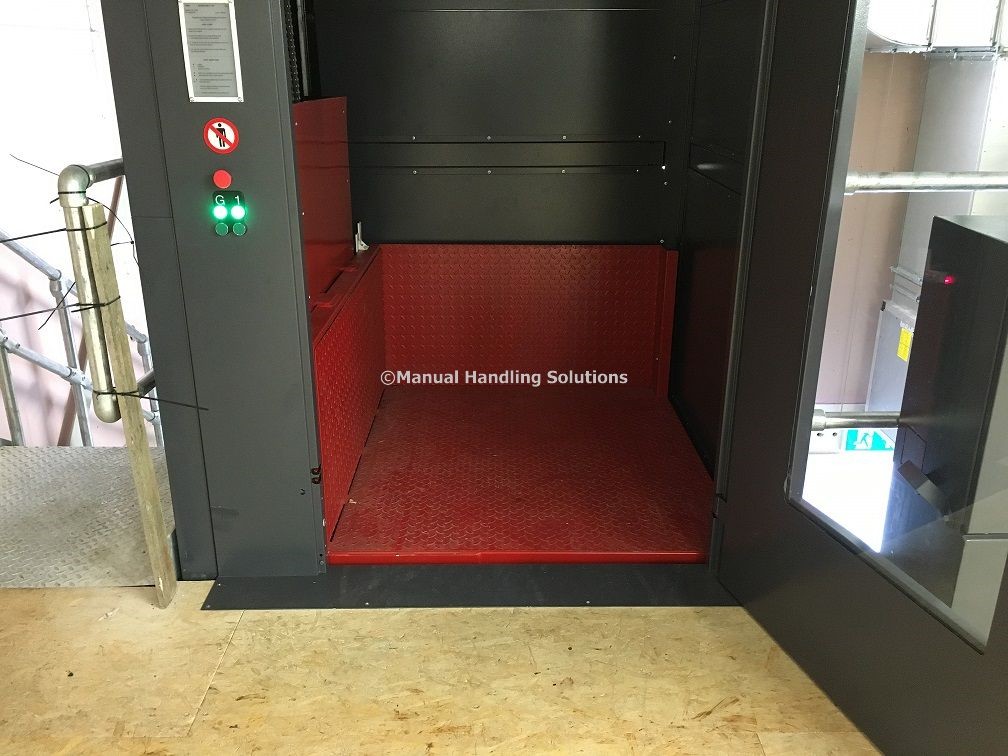

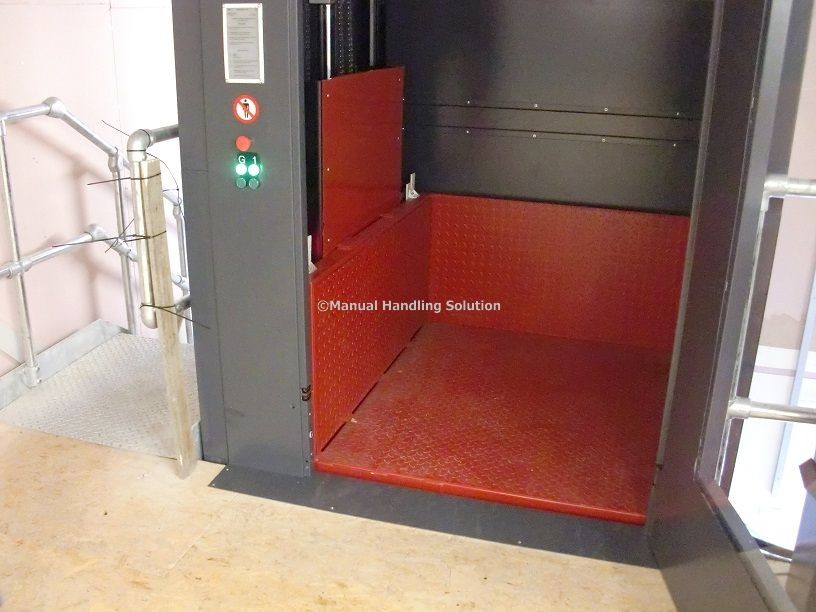

Goods Only Lift Fully Cladded 1000kg in a self-supporting cladding structure comprised of infilled sheet steel clad panels painted Dark Grey RAL 7024 fitted flush into a 70mm pit (by others) with a platform size 1350mm x 1200mm in Traffic Red RAL 3020.
Upper level exit is 90° from the lift entrance at lower level and finished floor height being 3500mm. Lift is fitted with “Press to Go” one touch controls at both levels with a lift speed 0,13 m/s.
Safety chain 24 VDC, Rupture valve, CRS electronic safety unit according EN81-2 A3 to prevent unintended movement – allowing a person to enter on the platform during loading only.

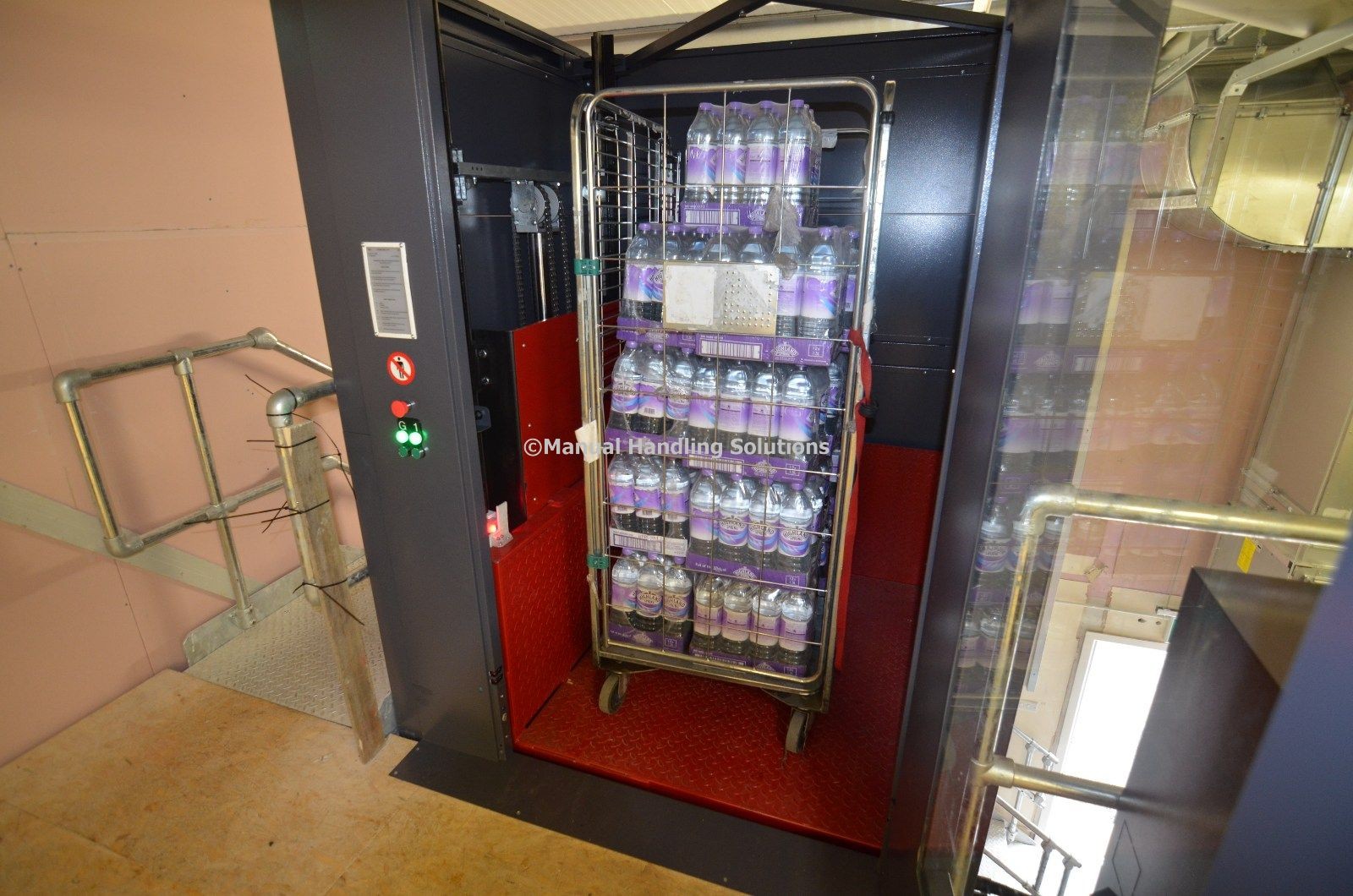

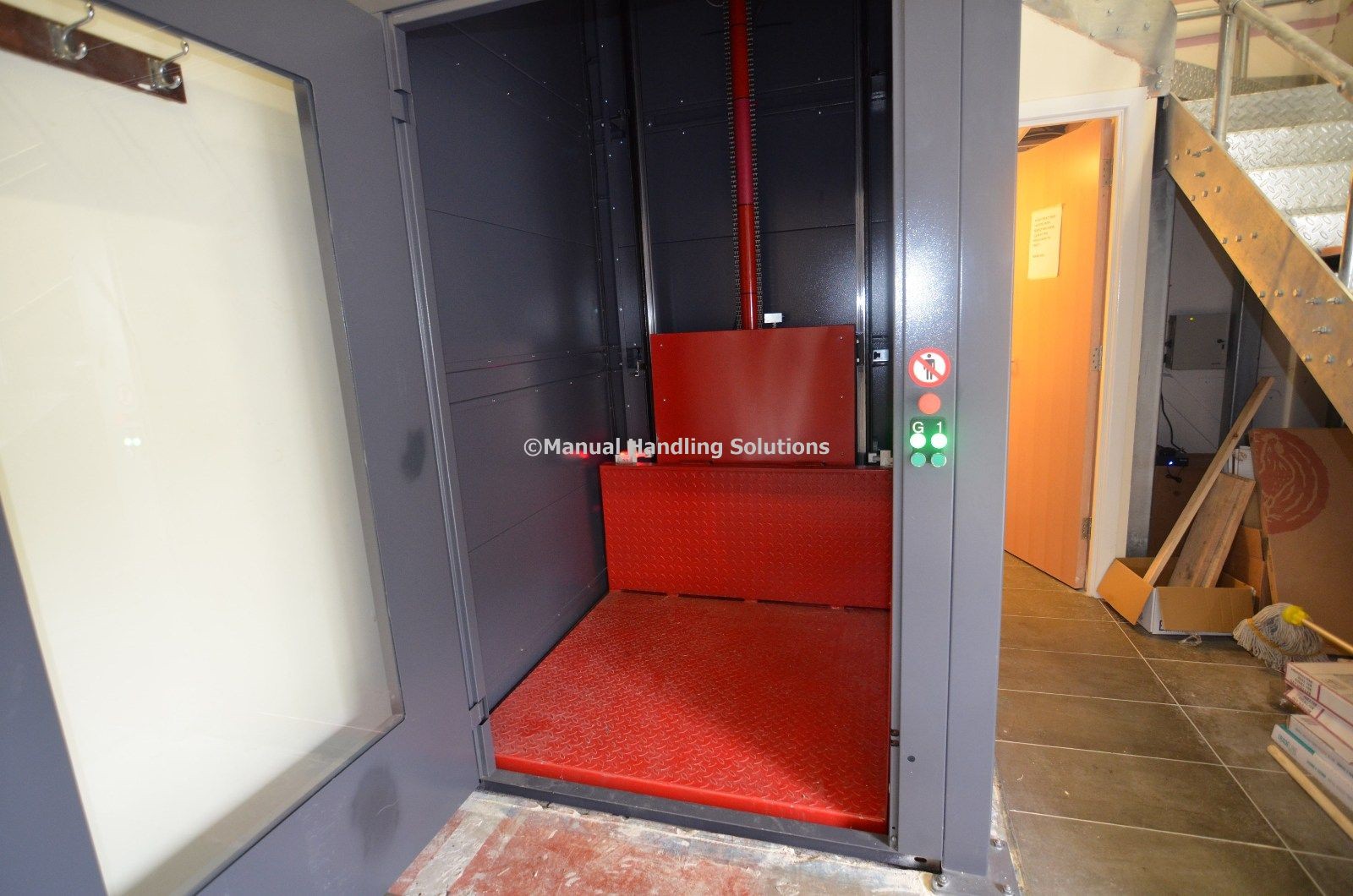

Electrics and Hydraulic pump all housed in a metal cabinet dimensions 600mm x 730mm x 570mm. Goods Lift having a single metal door with viewing glass fitted at both levels with push buttons integrated in the door frame, Elevator Safety lock with CE mark according EN81-2, door closer, automatic mechanical lock and unlock from the platform in the door zone (100 mm).
