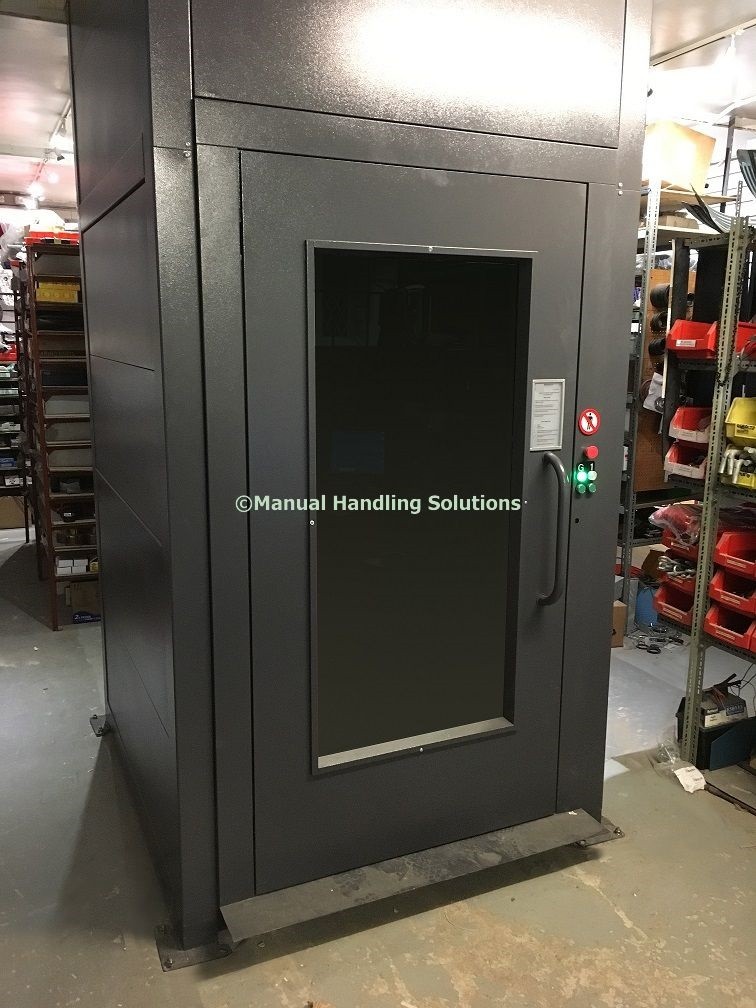

Goods only lift with a 500kg capacity installed Appleby-in-Westmorland Cumbria with a travel height 3107mm. Goods lift passes through a formed aperture (by others) with self-supporting cladded structure comprised of infilled sheet steel clad panels Dark Grey RAL 7024 with a platform size 1500mm x 1500mm in Cav Red RAL 3011.

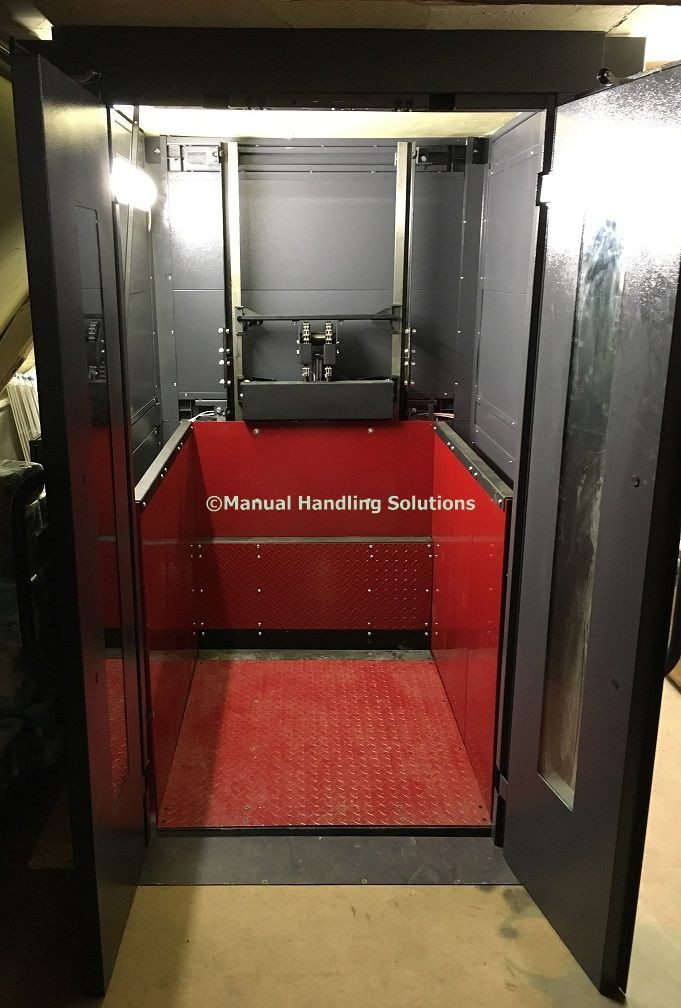

The platform is enclosed on 3 sides to a height of 1100mm. Loading and unloading is on the same face and at the entrance to the lift at ground level is a single opening door and at the upper level twin opening doors with a clearance of 1000mm each door fitted with viewing glass with push buttons integrated in the door frame, Elevator Safety lock with CE mark according EN81-2, door closer, automatic mechanical lock and unlock from the platform in the door zone (100 mm).
Goods Lift is fitted with “Press to Go” one touch controls at both levels with a lift speed 0,13 m/s. Safety chain 24 VDC, Rupture valve, CRS electronic safety unit according EN81-2 A3 to prevent unintended movement – allowing a person to enter on the platform during loading only.
Electrics and Hydraulic pump all housed in a metal cabinet dimensions 600mm x 730mm x 570mm. Goods Lift supplied single phase so that it can be run from a generator (Village is susceptible to flooding) also the power pack and hydraulic unit is positioned upstairs. At the lower level client is going to incorporate a folding ramp.
Installed – Pigney & Son Chapel St, Appleby-in-Westmorland Cumbria CA16 6QR
