Goods Lift Penryn Campus Cornwall
|Goods Lift Penryn Campus Cornwall

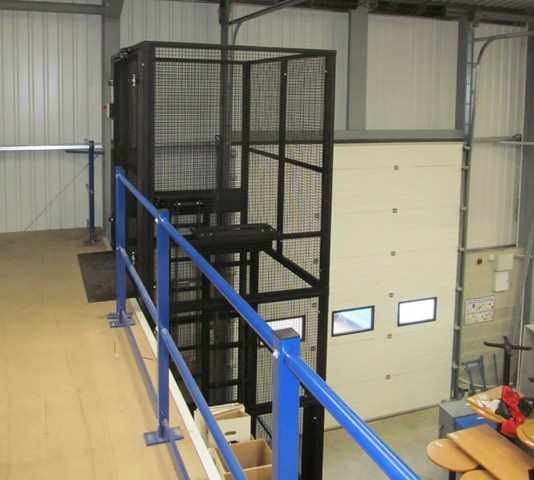

Goods Lift, with maximum working load 500kg, enclosed in a self-supporting mesh shaft. Lift height 3005mm with a platform size 1300mm x 1300mm guarded 900mm high on the non-loading edges.

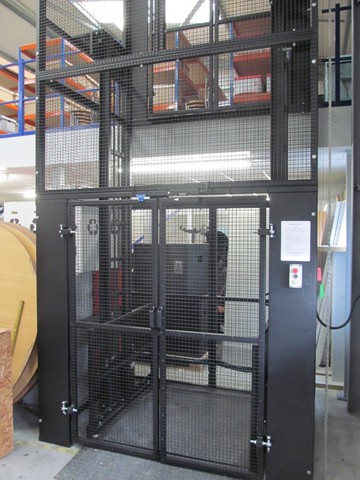

At the entrance to the lift at both levels there will be 2000mm high gates, which will be fitted with electrical interlocks to prevent the gates being opened unless the platform is docked at the appropriate level and prevent the lift being operated unless all gates are closed.
At the lower level a 500mm long fixed ramp will be provided to assist loading on to the 50mm deep platform. Power supply 2.2kw, 415 volt, three-phase and neutral supply is required terminated in an isolator at the lower level.
Control is via a hold to run, push button control station adjacent to the gates at both levels. Goods Lift supplied CE Marked with Declaration of Conformity.
Operation and Maintenance Manual issue on completion. LOLER Report of Thorough Examination and Test issued on commission. Operator training carried out on completion.
Installed for Falmouth Exeter Plus at Penryn Campus, Falmouth University, Tremough, Penryn, Cornwall, TR10 9FE
