Goods Lift installed in Hackney London

Goods Lift installed in Hackney London Goods Lift installed in Hackney London

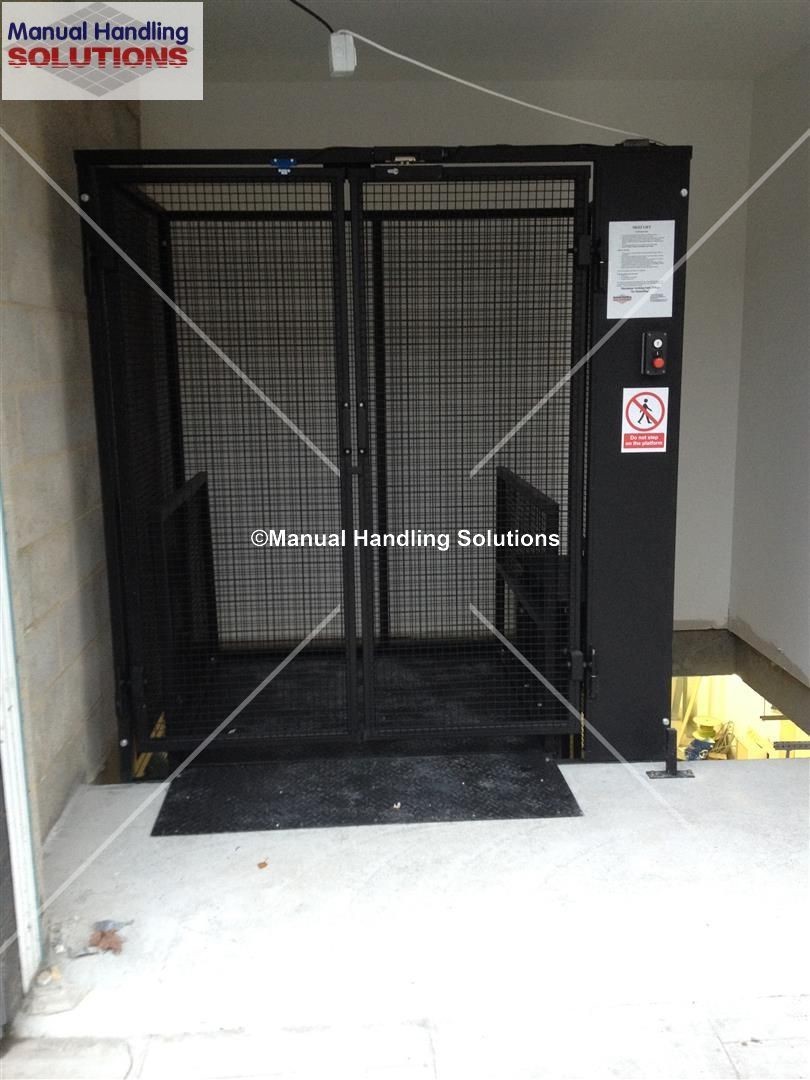

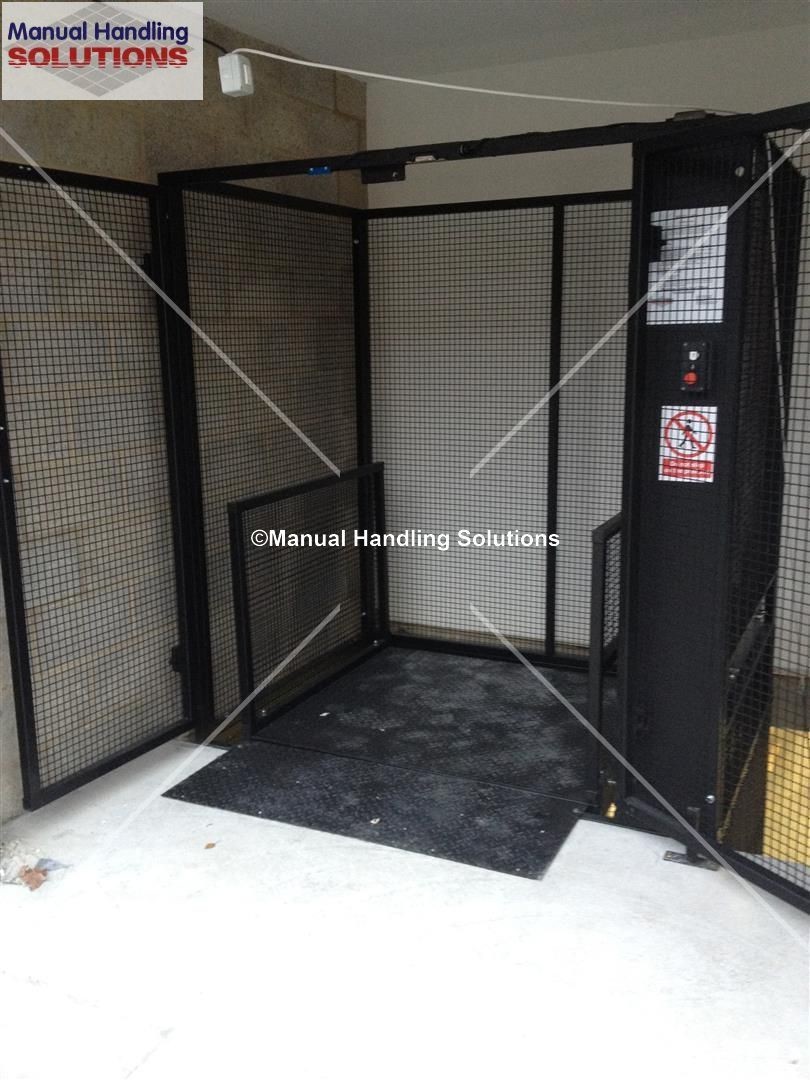

Goods Lift, with maximum working load 250kg, 3850mm Floor to Floor Height enclosed in a self- supporting mesh shaft. The platform will be 1300mm x 1100mm and guarded 900mm high on the non-loading edges. At the entrance to the lift at both levels there will be 2000mm high gates, which will be fitted with electrical interlocks to prevent the gates being opened unless the platform is docked at the appropriate level and prevent the lift being operated unless all gates are closed. At the lower level a 500mm long fixed ramp will be provided to assist loading on to the 50mm deep platform. Lift will be recessed in a shallow 50mm pit (by others)

A 20 amp, 240 volt, single-phase supply is required terminated in a double pole switch at the lower level. Control is via a hold to run, push button control station adjacent to the gates at both levels.

The 12 months Statutory Inspections and maintenance ensures continued safe and reliable use of the equipment and full compliance with current legislation. In brief it comprises an annual service with thorough examination and test, a six-month inspection and test and all labour or callout charges.

Installed at
Norris Steam Ltd
Unit 6c Crystal Court
Sheep Lane
E8 4QS
