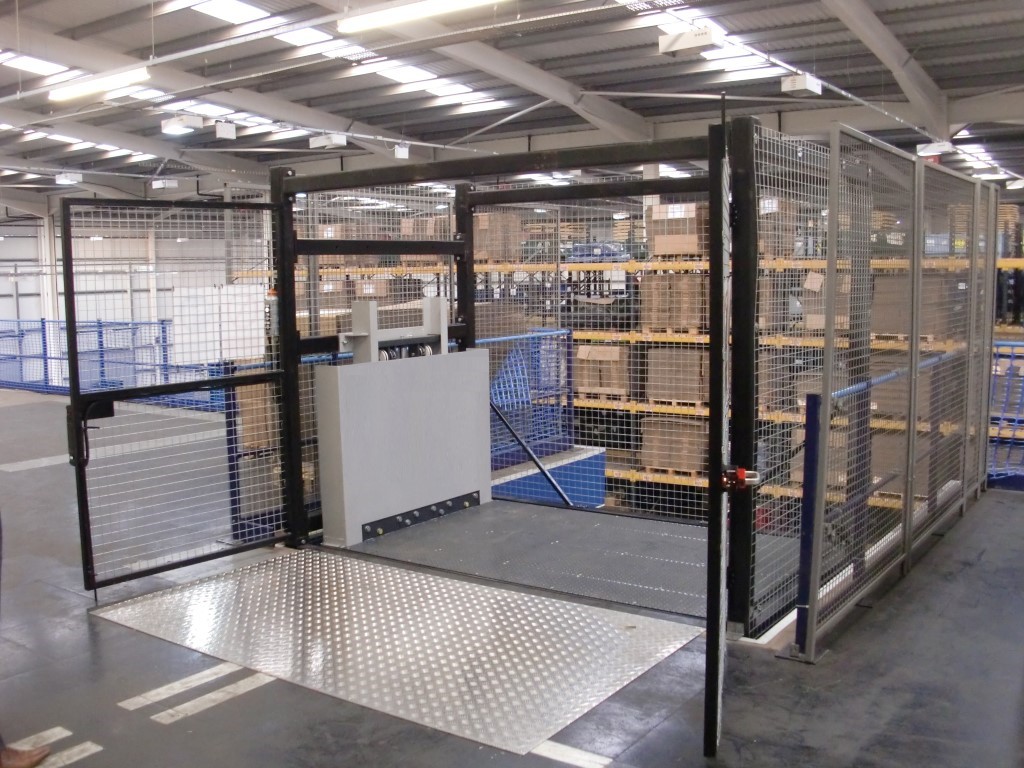

Goods Lift installed in Birmingham

Goods Lift installed in Birmingham

Goods Lift installed in Birmingham

Birmingham Goods Lifts Goods Lift Coleshill Goods Lift Platform Birmingham Goods Lifts 3 stop Birmaingham Goods Lifts Birmingham Goods Lifts Gate Locks Sertec Goods Lift Shot Bolts Goods Lift Birmingham 3 stop Goods Lift Controls Birmingham Goods Lift lightbox MACby v6.1

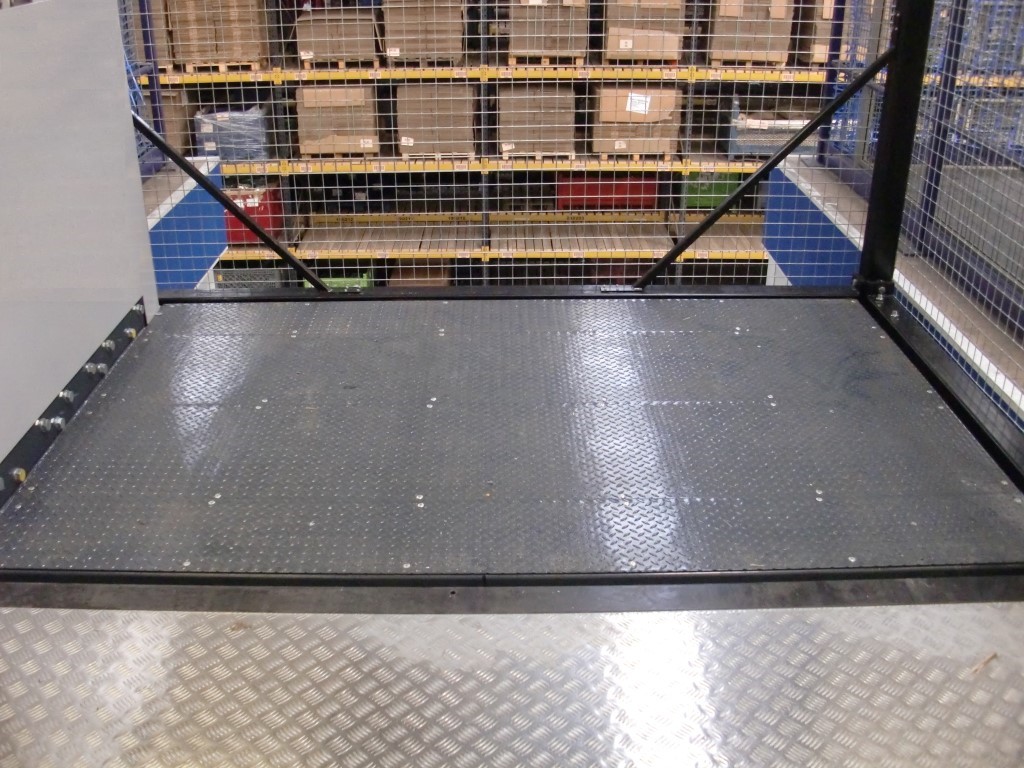

Goods Lift 3 stop with 1000kg SWL Capacity with a working platform size 2500mm x 1600mm, platform not recessed in a pit but will stand 300mm above floor level. Finished floor heights 3825mm first floor second floor 7650mm platform anti-skid checker plate. Goods are loaded on one long side at lower level and exit at opposite long side at upper two levels (through car lift). Goods Lift supplied with Low voltage ‘Press to Go’ push buttons fitted with key lock and emergency stop at each level, electrics 3 phase, 415v, 50Hz, 5.5Kw. Lift is finished in Light Grey (RAL 9006) Dark Grey (RAL 7016). Shot Bolts – supplied as standard, these lock the platform in the raised position at each floor level.

Goods Lift supplied with fully self-supporting lift structure, manufactured from box section steel with 25mm² galvanised mesh infill sides and single opening gates on one short side at each level .The gates are fitted with a heavy duty interfaced lock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if a loading gate on any level is not fully closed. Lift fitted with standard height guards – gates – barrier at upper level at 2200mm. Gate height at lower level 2200mm. Lift supplied with Lift Safety Props and Bund Tray.

EC Certificate of Conformity (According to Appendix 11 of the EC directive 98/37/EECO) is supplied confirming the equipment offered conforms to the essential requirements indicated by:

  • The Machine Directive 98/37/CE
  • The Low-Tension Directive 73/23/EEC and its subsequent amendments 93/68
  • Safety In compliance with E.C rules. (Machinery Directive 2006/42/EC)
  • The following rules are also taken into consideration: UNI EN 1493 (as much as can be applied) -EN 292/1/2-EN294-EN349-EN418-EN982-EN 593-EN 594-1-EN 1037-EN 1088-EN 60204-1

Delivery, installation – Sertec Group Holdings Ltd, Wincaster House, Highway Point, Gorsey Lane, Coleshill, Birmingham, B46 1JU
