|Between Floor Goods Lift

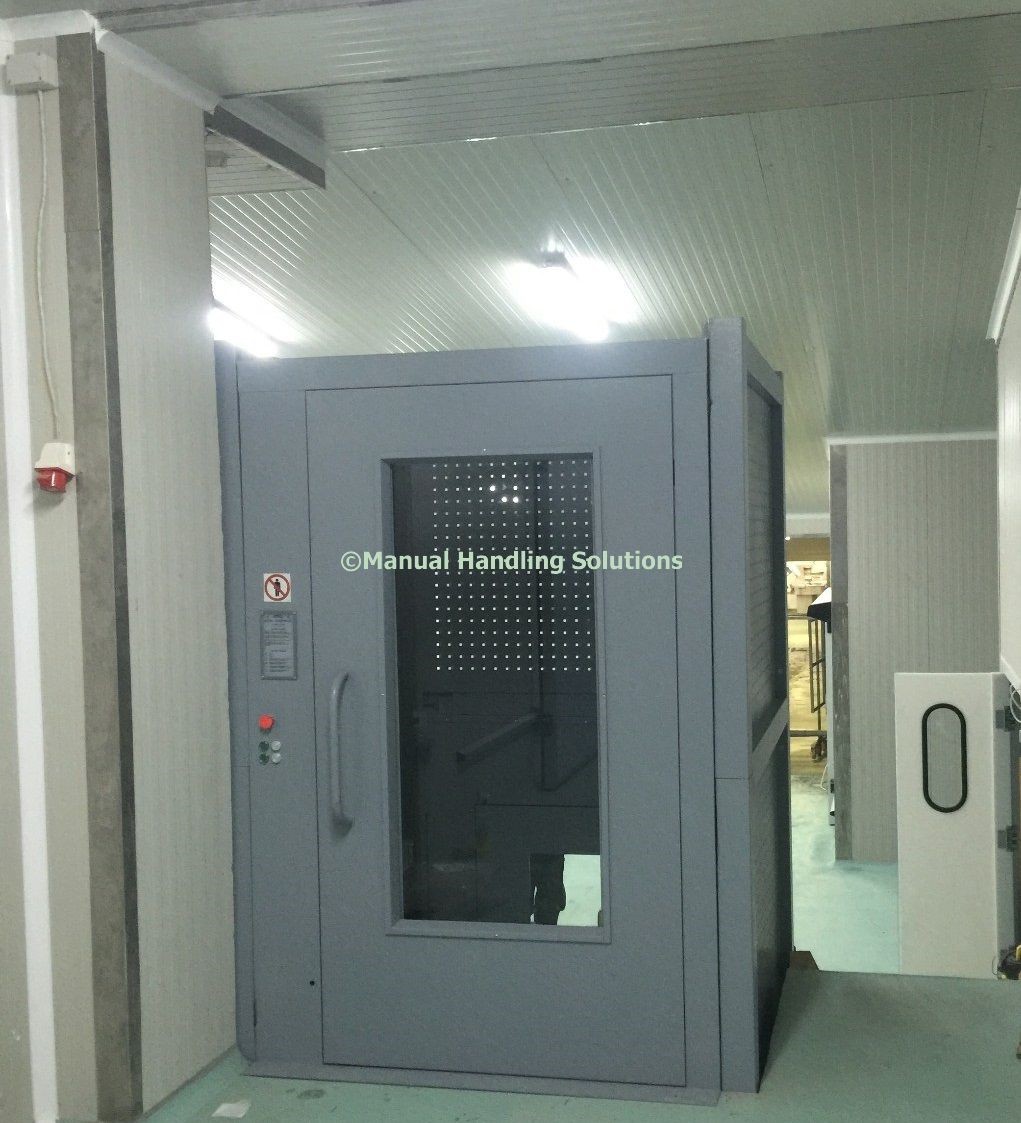

Between floor goods lift 500kg installed in food processing factory (clean room area) with a self-supporting punched cladded structure comprised of infilled sheet steel clad panels painted Dark Grey RAL 7024.
With a platform size 1200mm x 1400mm finished galvanised. Lift height 1700mm and fitted with “Press to Go” one touch controls at both levels with a lift speed 0,13 m/s. Safety chain 24 VDC, Rupture valve, CRS electronic safety unit according EN81-2 A3 to prevent unintended movement – allowing a person to enter on the platform during loading only.
Electrics and Hydraulic pump all housed in a metal cabinet dimensions 600mm x 730mm x 570mm. Goods Lift having single metal door with viewing glass fitted at both levels with push buttons integrated in the door frame, Elevator Safety lock with CE mark according EN81-2, door closer, automatic mechanical lock and unlock from the platform in the door zone (100 mm). Lift installed in a 100mm pit by others. Installation Heathrow London.
